Tiny Tubes

Copper Tubes

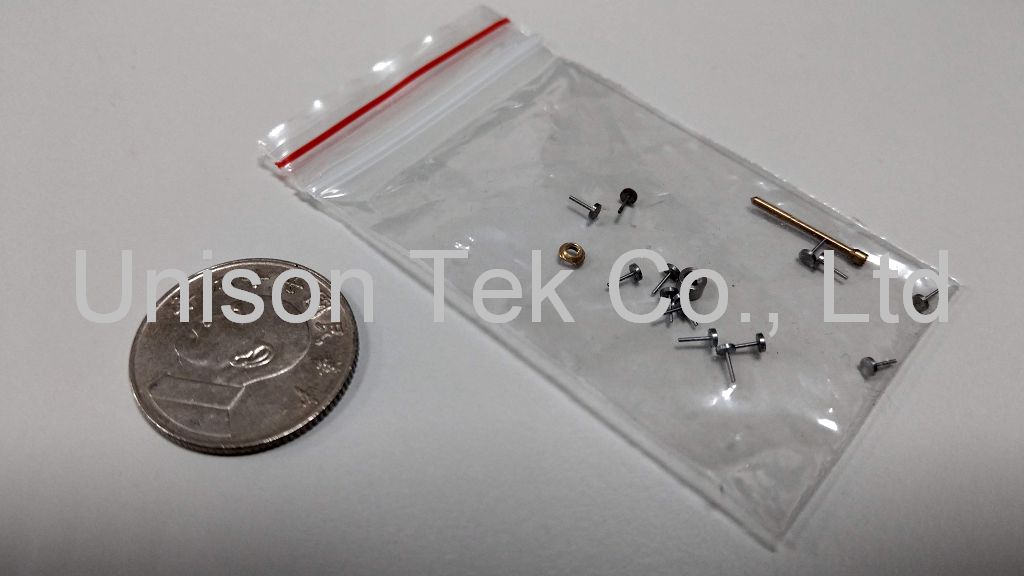

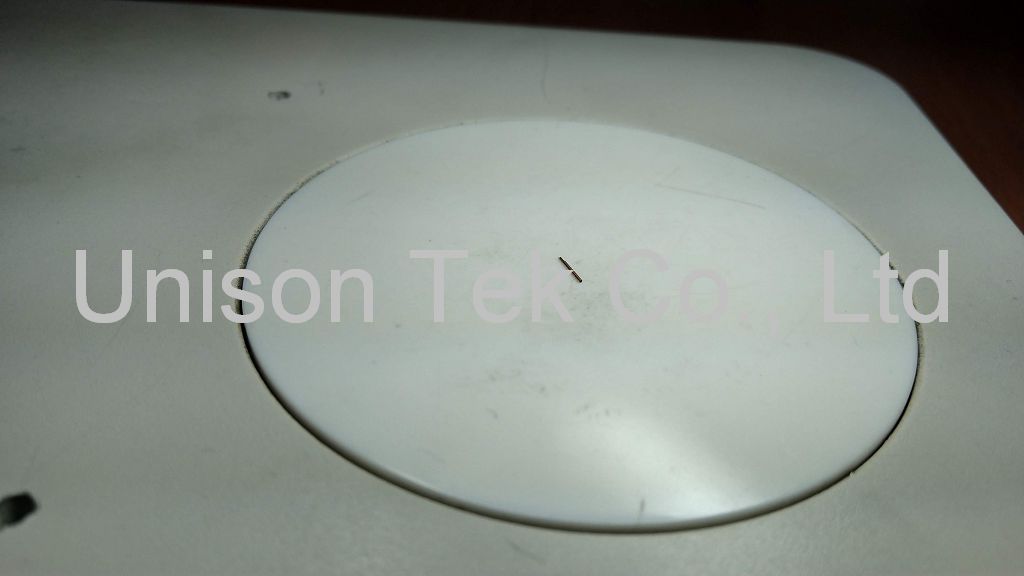

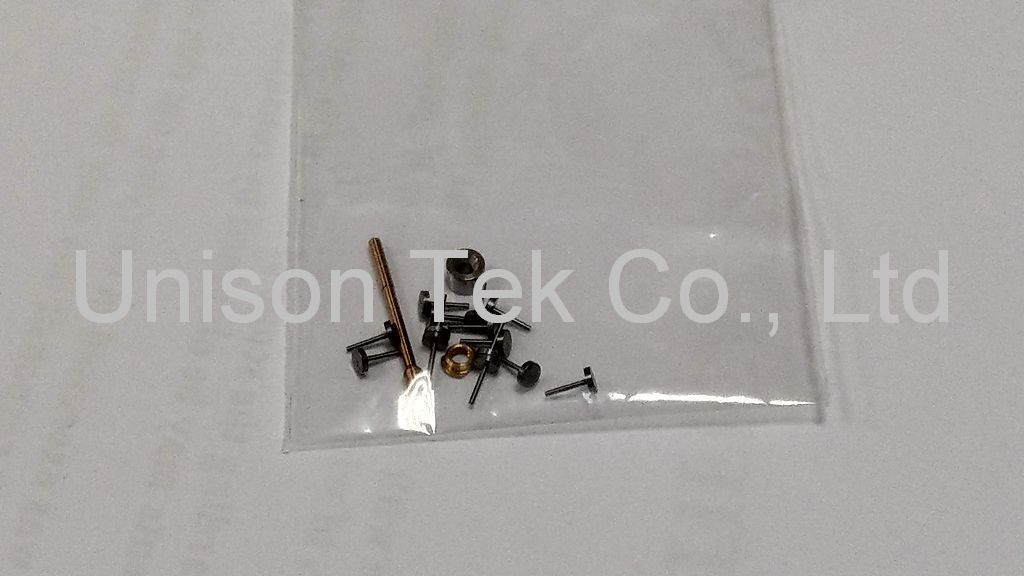

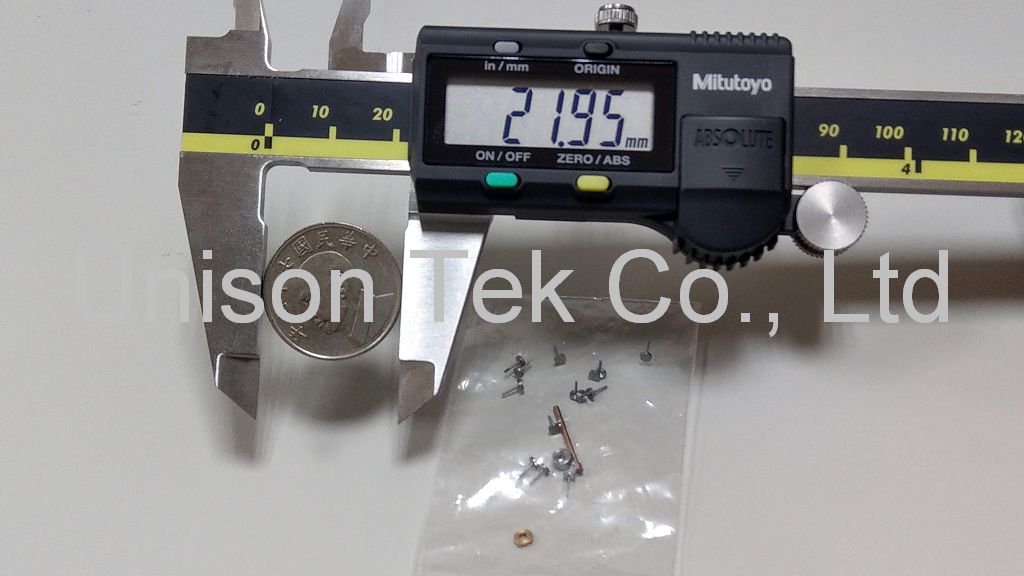

tiny turning parts unisontek tiny turning parts unisontek

Straightening Tube

Range

Tolerance

Outside Diameter

0.3-2.0mm

±0.01mm(standard)

2.01-4.0mm

±0.02mm(standard)

Wall thickness

0.05-0.8mm

±0.01mm

Cutting length

4-150mm

±0.1mm

150-1000mm

±0.5mm

1000-2500mm

±2.0mm



Tube in coils

Range

Tolerance

Outside Diameter

0.2-2.0mm

±0.01mm(standard)

2.01-6.0mm

±0.05mm(standard)

Wall thickness

0.05-0.8mm

±0.01mm

Coil Diameter

450,650 mm

Special case can be changed after discussion

Coil weight

5-20kg



Brass Tubes

Straightening tube

Range

Tolerance

Outside Diameter

0.15-2.0mm

±0.01mm(standard)

2.01-3.0 mm

±0.01mm(standard)

Wall thickness

0.05-0.4mm

±0.01mm

Cutting length

4-150mm

±0.1mm

150-1000mm

±0.5mm

1000-2500mm

±2.0mm



Tube in coils

Range

Tolerance

Outside Diameter

0.15-2.0mm

±0.01mm(standard)

2.01-4.0mm

±0.05mm(standard)

Wall thickness

0.05-0.8mm

±0.01mm

Coil Diameter

450,650 mm

Special case can be changed after discussion

Coil weight

5-20kg



Bronze Tubes

Straightening tube

Range

Tolerance

Outside Diameter

0.15-2.0mm

±0.01mm(standard)

2.01-3.0mm

±0.01mm(standard)

Wall thickness

0.03-0.3mm

±0.01mm

Cutting length

4-150mm

±0.1mm

150-1000mm

±0.5mm

1000-2500mm

±2.0mm



Tube in coils

Range

Tolerance

Outside Diameter

0.15-2.0mm

±0.01mm(standard)

2.01-3.0mm

±0.05mm(standard)

Wall thickness

0.03-0.3mm

±0.01mm

Coil Diameter

450-650mm

Special case can be changed after discussion

Coil weight

5-20kg



EDM Tubes

Application:spark-erosion electrodes, Range : Outer diameter 0.15-1.50mm.

Outer Diameter(mm)

Tolerances

Length(mm)

Material

0.15

+0/ -0.01

200

Brass/Copper

0.20

200

Brass/Copper

0.25

200

Brass/Copper

0.30

300/400

Brass/Copper

0.40

300/400

Brass/Copper

0.50

+0/ -0.02

300/400

Brass/Copper

0.60

300/400

Brass/Copper

0.70

300/400

Brass/Copper

0.80

300/400

Brass/Copper

0.90

300/400

Brass/Copper

1.00

300/400

Brass/Copper

1.10

+0/ -0.02

300/400

Brass/Copper

1.20

300/400

Brass/Copper

1.30

300/400

Brass/Copper

1.40

300/400

Brass/Copper

1.50

300/400

Brass/Copper





More Products Info

Visit CNC Milling PartsStamping Parts , CNC Machining Service in TaiwanTechnical Data for your reference and Quality Inspection to get more info about our products, if you are interested in any kind of products, please e-mail to us to get a free quote.

Alloy and Application

Material

Standard

Nominal chemical
composition %

Density

JIS

DIN

EN

Austenitic
stainless
steels

SUS304

1.4301

AISI 304

Fe:72
Ni:8.5-10
Cr:17-21
C
0.07

7.90

Austenitic
stainless
steels

SUS316L

1.4404
1.4435

AISI316L

Fe:68
Ni:11-14
Cr:16.5-18.5
Mo:2.5-3
C
0.03

7.90



Production Range

Straightening tube

Range

Tolerance

Outside Diameter

0.3-2.0mm

±0.01mm(standard)

2.01-5.0mm

±0.02mm(standard)

Wall thickness

0.07-0.4mm

±0.01mm

Fixed length

4-150mm

±0.1mm

150-1000mm

±0.5mm

1000-2500mm

±2.0mm





Straightening tube

Range

Tolerance

Outside Diameter

0.3-2.0mm

±0.01mm(standard)

2.01-5.0mm

±0.05mm(standard)

Wall thickness

0.07-0.4mm

±0.01mm

Coil Diameter

450,650 mm

Special case can be changed after discussion

Coil weight

5-20kg



USB TYPE-C Hulled

Metal

Size

Cut For Length

SUS 304 / 316L

8.25*2.4

Customer need

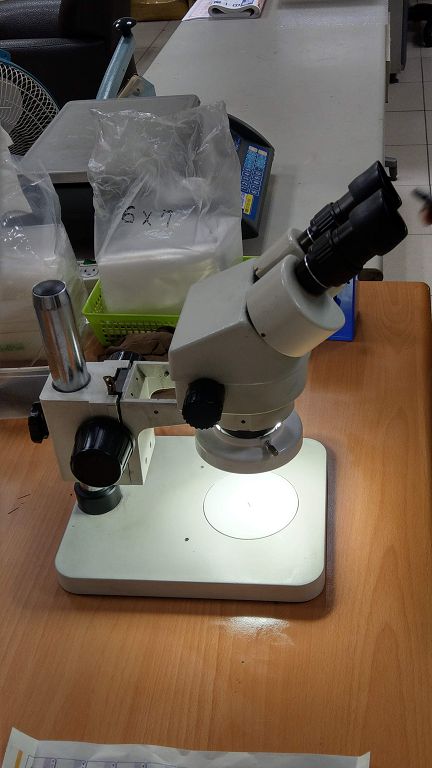

 tiny turning parts unisontek
